SPECIFICATIONS



Number of Panels: 1

Flexible Solar Panel: Yes

Foldable Solar Panel: Yes

Type: Solar Panel

Module Efficien: 21.8%

Model Number: foldable solar panel

Material: Other

Nominal Capacity: 100w/150w/200w /300w

Number of Cells: 36*3

Max. Power: 100w/150w/200w / 300w

is_customized: Yes

Certification: CE

Certification: FCC

Certification: RoHS





Features:

a.High-efficiency：Select high-efficiency monocrystalline silicon solar cells, the power generation efficiency is 1.2 times higher than that of conventional polycrystalline.

b. Advanced technology: Using the second-generation component packaging process, it is thinner, lighter, softer and has a longer life.

c. Waterproof: The surface is made of PET material, which is treated with special technology to make it more wear-resistant and improve the absorption efficiency of sunlight.

d. Safety: It has high light transmittance, is safe and reliable, and has no danger of burning or explosion.

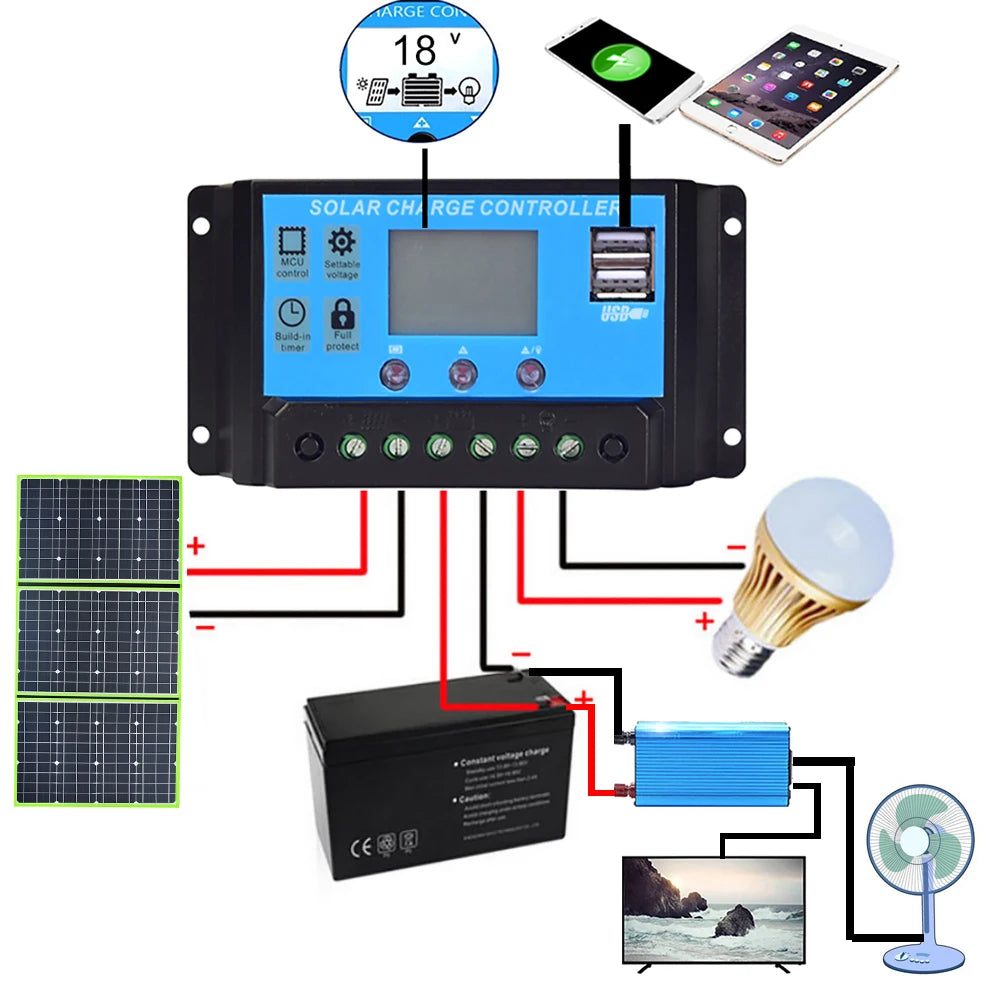

e. Easy carrying: Portable folding bag design, with controller and battery, suitable for outdoor scenes such as RV, household, camping, yacht, etc.

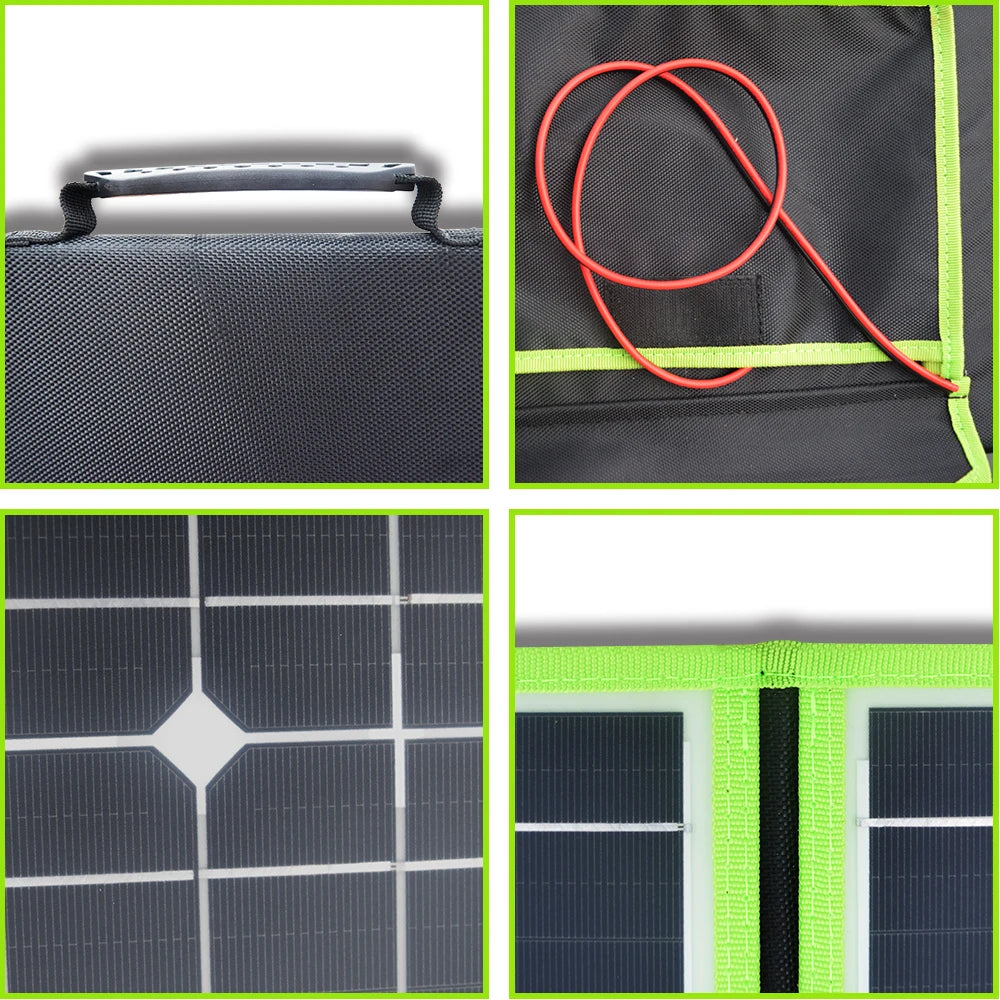

f. Convenience bag design: Solar portable folding charging bag with large capacity pocket for small mobile power and controller to avoid direct sunlight during charging.



Q: How long does it ship from China?

A:.we will ship your order by express delivery like EMS,DHL,Fedex.you can get it soon.

normally you can receive it within 8-12 working days after we ship out your order

*if you are urgent,you can contact us after placing order,we will try our best to urge for you.

Attention:

IF there is any problem about order after you received,you can contact us freely,we will be responsible for you.



100w Package list:

1*100w foldable solar panel

1*12v/24v 10A controller

1* SAE cable

1*3meters 2.5mm⊃2;alligator cable



100w Specifications:

1. Material: Monocrystalline silicon cell;

2. Working voltage: 20V/open circuit voltage: 24V

3. Power: 100W;

4. Maximum working current: 5a/short circuit current: 5.5a;

5. Working temperature: -20 ℃ ~ + 60 ℃;

6. size: fold: 660X445X10mm  unfold:890X660X3mm;

7. Weight : 2.55kg;

8. Belt stitching pocket with 0.5MSAE connector cable;

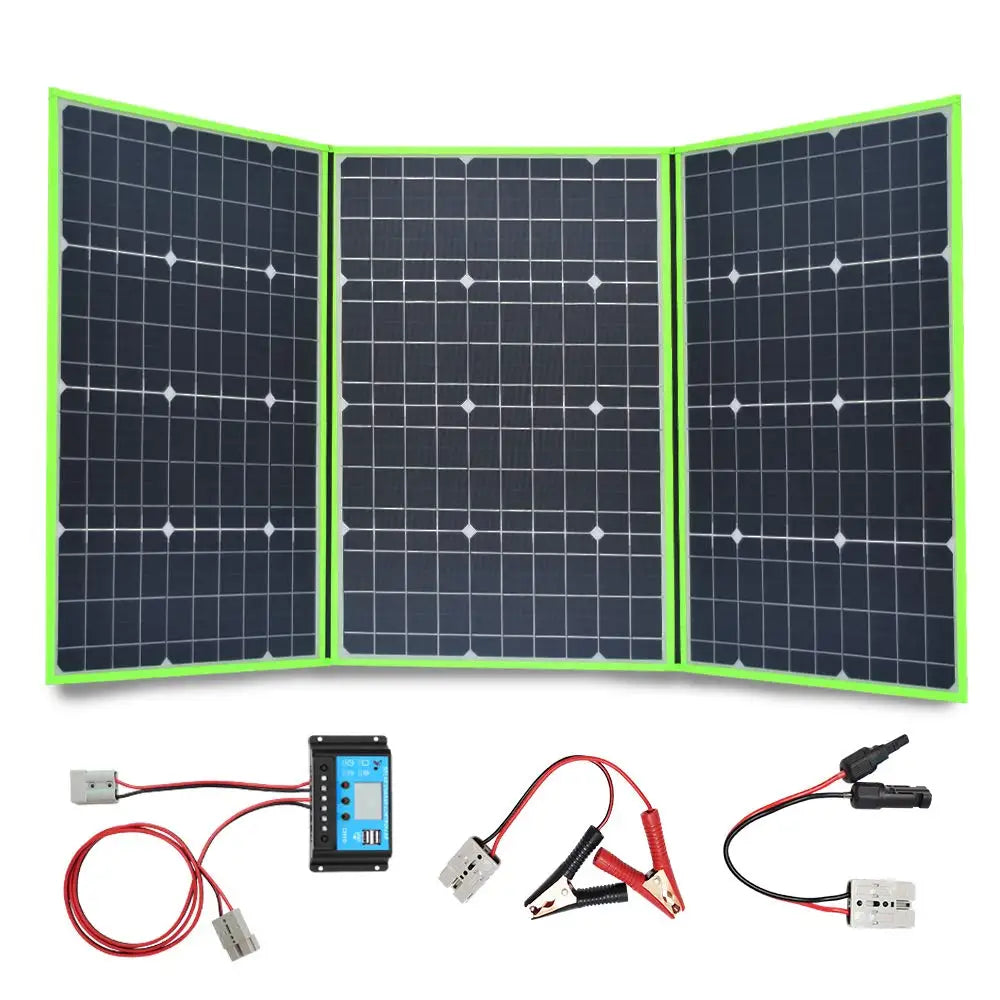

150w Package list:

1*150w 20v foldable solar Panel

1*12v/24v 20A controller

1*3 meters 2.5mm⊃2; alligator cable



150w Specifications:

1. Material: Monocrystalline silicon cell;

2. Working voltage: 20V

Open circuit voltage: 24V

3. Power: 150W;

4. Maximum working current: 7.5A

short circuit current: 9A;

5. Working temperature: -20 ℃ ~ + 60 ℃;

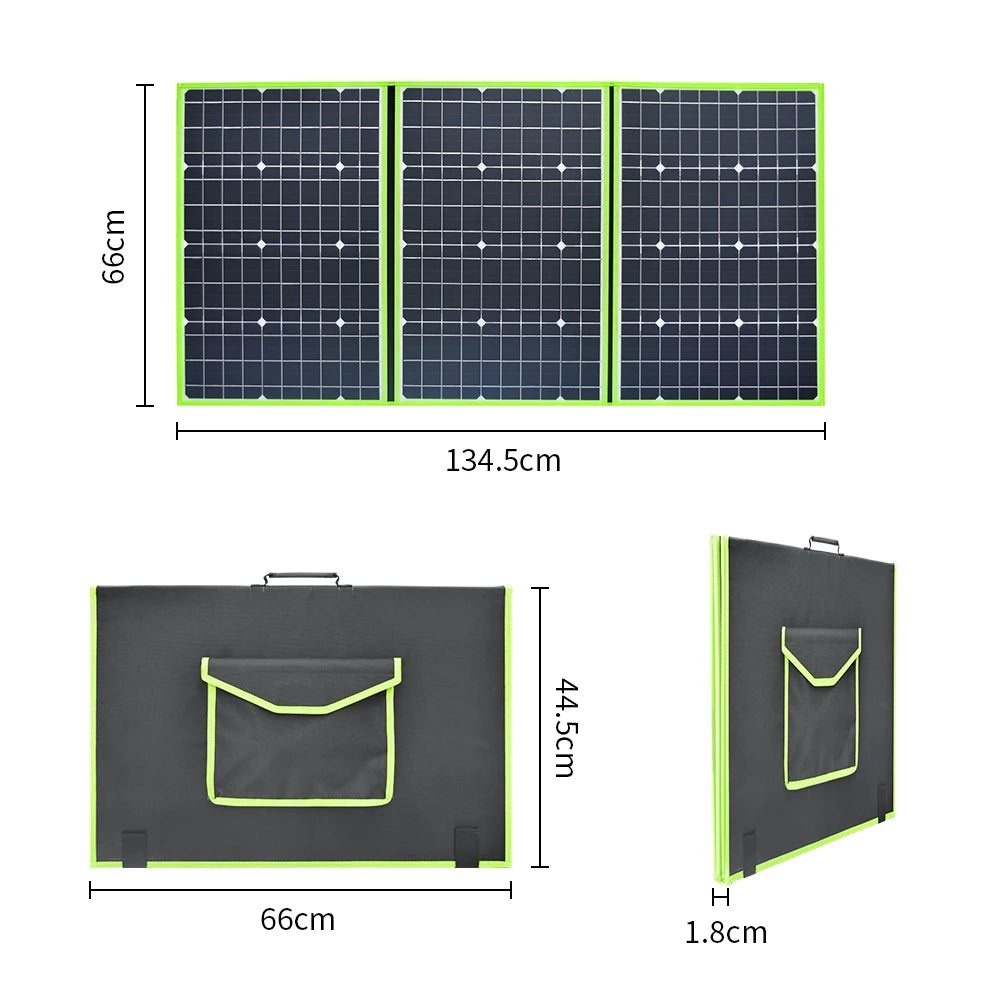

6. size: fold: 660X445X18mm

unfold:1345X660X3mm;

7. Weight : 3900kg;

8. Belt stitched pockets with 1M long cable;

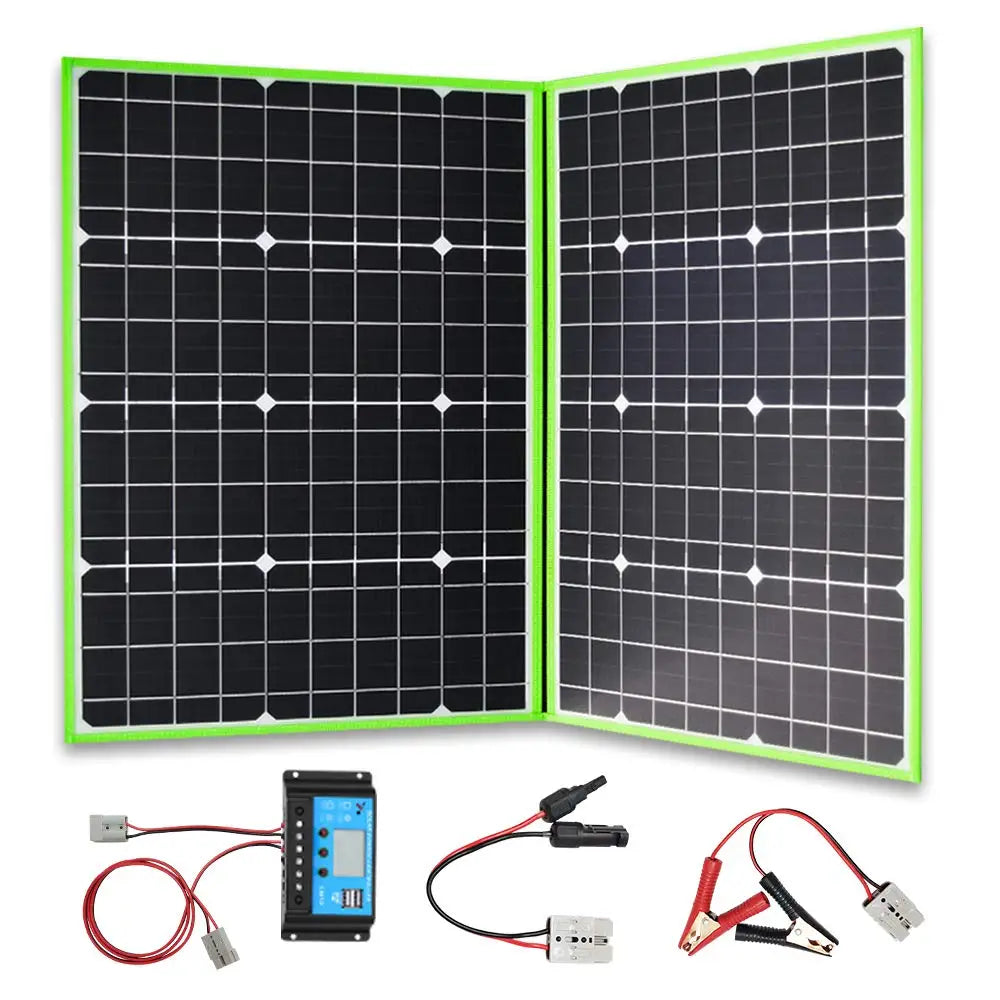

200w Package list:

1*200w 20v foldable solar Panel

1*12v/24v 20A controller

1*3 meters 2.5mm⊃2; alligator cable



200w Specifications:

1. Material: Monocrystalline silicon cell;

2. Working voltage: 20V/open circuit voltage: 24V

3. Power: 200W;

4. Maximum working current: 10a/short circuit current: 12a;

5. Working temperature: -20 ℃ ~ + 60 ℃;

6. size: fold: 660X445X20mm  unfold:1795X660X3mm;

7. Weight : 5150kg;

8. Belt stitched pockets with 1M long cable;

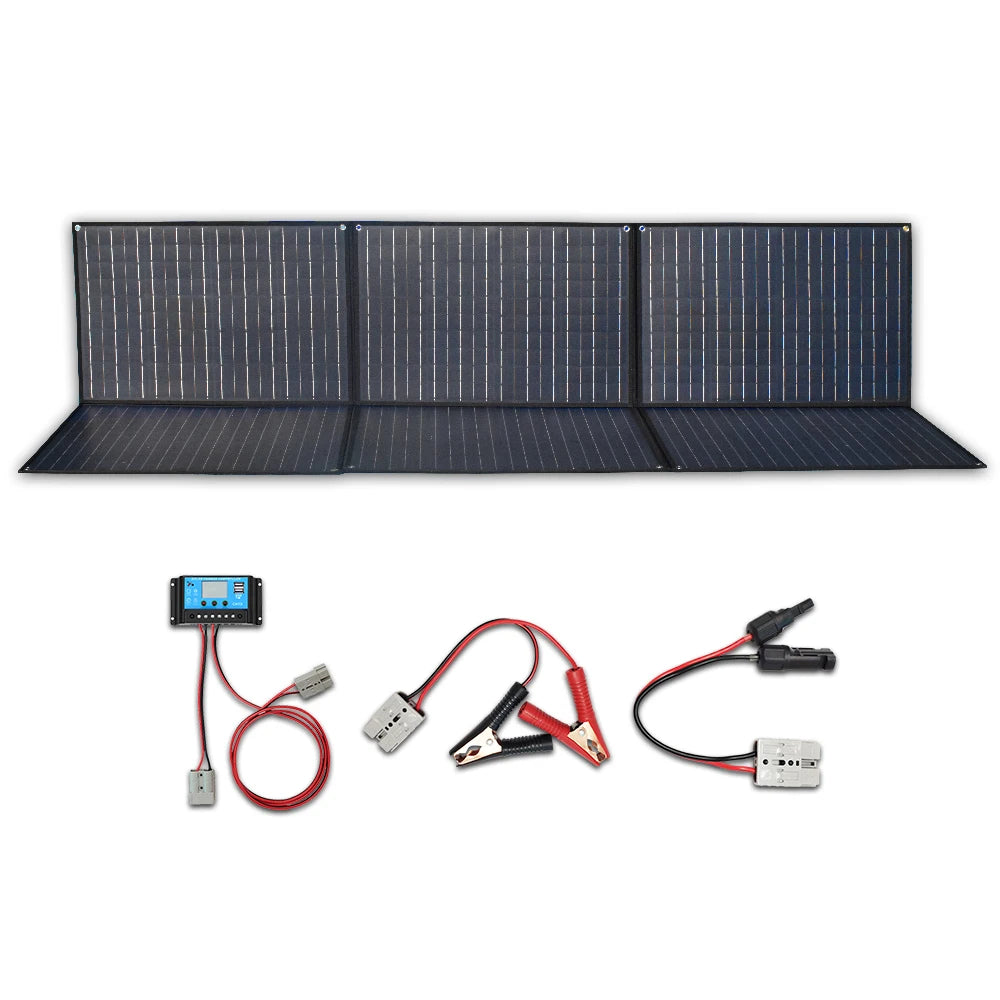

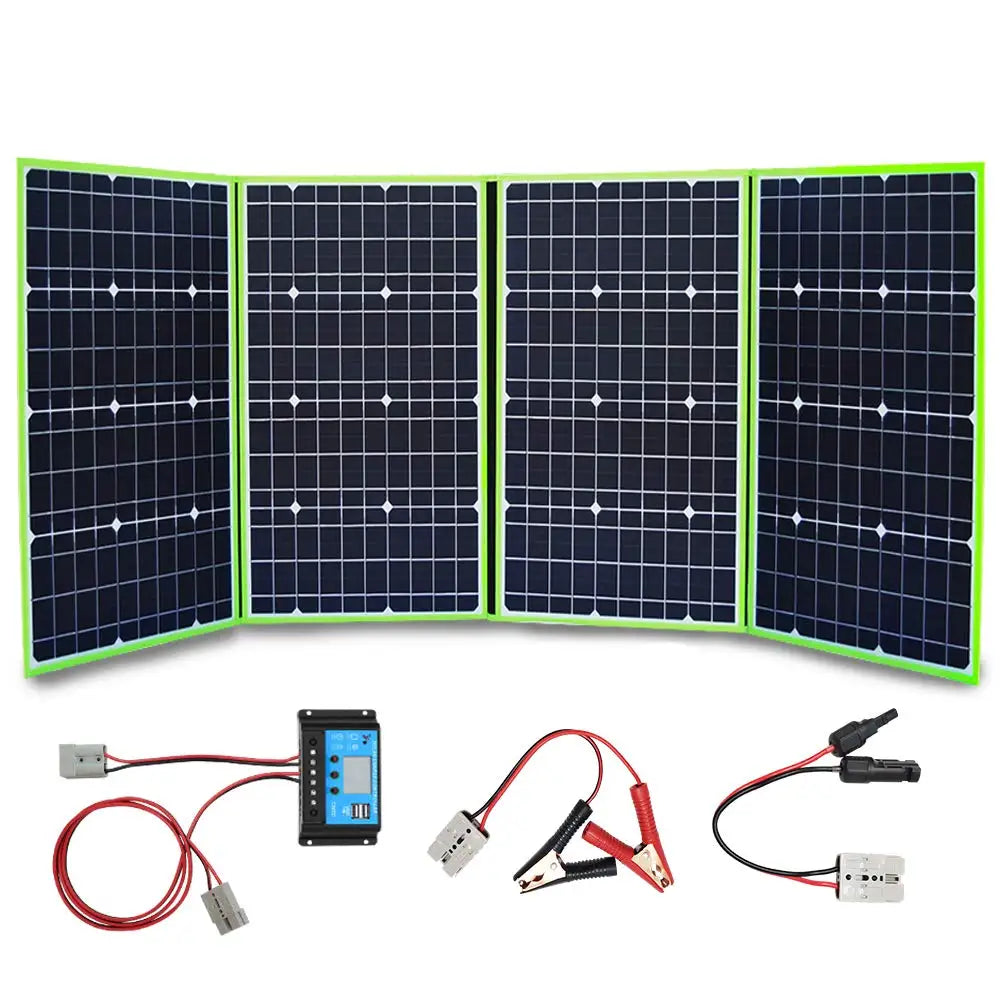

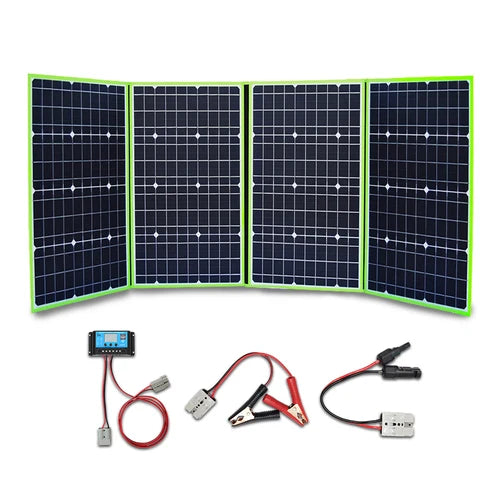

300W Package list:

1*300w foldable solar panel

1*12v/24v 30A controller

1*3meters 2.5mm⊃2;alligator cable



300W Specifications:

1. Material: Monocrystalline silicon cell;

2. Working voltage: 20V/open circuit voltage: 24V

3. Power: 300W;

4. Maximum working current: 15a/short circuit current: 16.5a;

5. Working temperature: -20 ℃ ~ + 60 ℃;

6. size: fold: 665X465X30mm  unfold:2010X950X3mm;

7. Weight : 7800kg;

8. Belt stitched pockets with 1M long cable;
