SPECIFICATIONS



Model Number: Pile driver

Certification: CE

Usage: SOIL

Power Type: Petrol / Gas

Color: Red, Black

Style: Modern

Engine Type: Two-stroke, Air Cooling, Single-cylinder





Description

This pile driver is equipped with a high power generator with strong power, and the quality is very good. This pile driver is equipped with a powerful 52cc two-stroke gasoline engine. Its max rotational speed reaches up to 6500r/min with a power of 1900W(2.3HP), so it operates very efficiently. So it will be your good helper.



Specification

Engine Type: Two-stroke, Air Cooling, Single-cylinder
Displacement: 52cc
Fuel Tank Capacity: 1L/0.26gal
Fuel Consumption Rate: ≤0.6L/h
Impact Frequency: 1300-3000BPM
Impact Energy: 20-55J
Starter System: Hand Pull Start
Fuel Type: Mixed Oil (25 Gasoline: 1 Motor Oil)
Size: approx. 74*34*26cm/29.13*13.39*10.24in
Post Driving Head Mount Size: 55-70mm/2.17-2.76in
Max. Power & Speed: 1900W(2.3HP)/6500r/min
Max. Torque & Speed: 2.5N.m/5500r/min



Key Features

Comfortable and Durable Material: The heavy-duty aluminum drive housing is lightweight, easy to operate, and durable. The soft, non-slip rubberized plastic sponge handle greatly reduces machine recoil, making it easy to grasp and use.

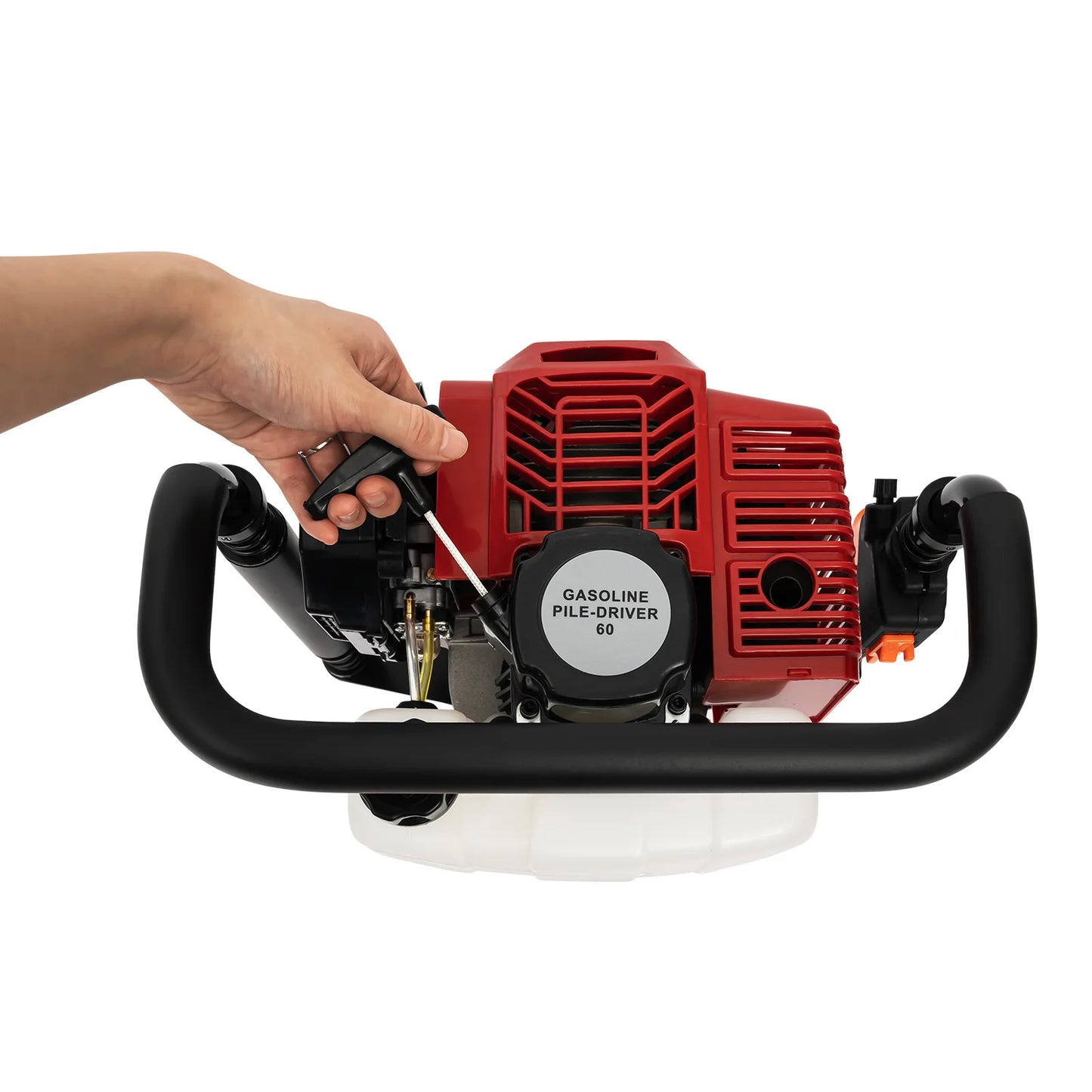

Easy Recoil Starter: When you are using the pile driver, you just need to pull the starter quickly and coherently, which is very easy to start and saves many efforts for you.

High Efficiency: This pile driver is equipped with a powerful 52cc two-stroke gasoline engine. Its max rotational speed reaches up to 6500r/min with a power of 1900W(2.3HP), so it operates very efficiently.

Smooth Running: Shock-absorbing springs and advanced cooling vents ensure stable machine operation free from shock forces and high temperatures.

Stable Operation: Our machine is two-stroke powered, it doesn't pull cylinders or stall easily even when the temperature is high. It can work stably. So you can buy and use it with confidence.

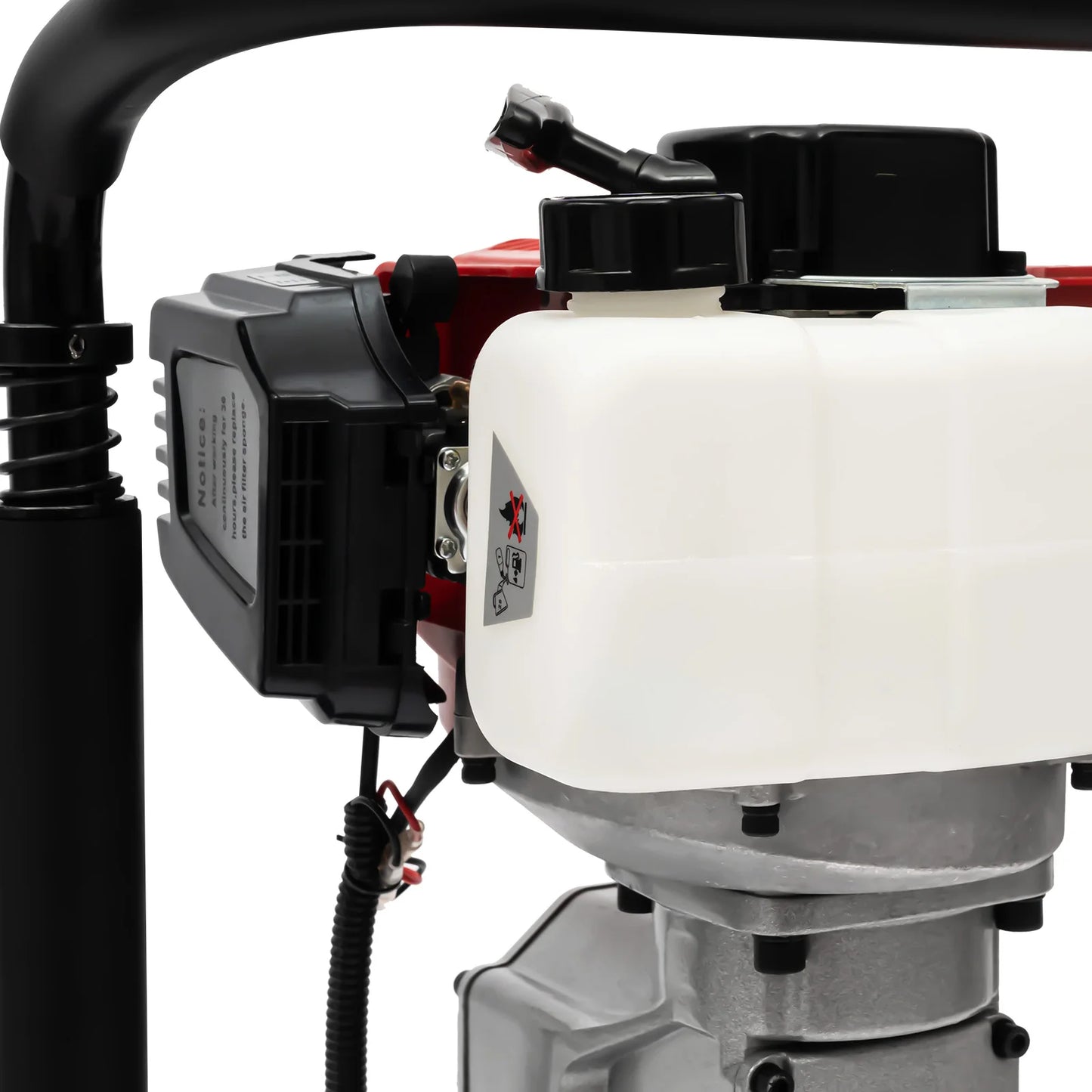

Large Capacity Semi-transparent Fuel Tank: This pile driver has a 1L/0.26gal large capacity fuel tank. And the fuel tank is semi-transparent, so you can keep an eye on the usage of the fuel, which brings you a more reassuring feeling of use.

Money-saving: It adopts a high-quality carburetor, which can make gasoline fully burned when running, avoiding gasoline waste and saving money for you.

Professional Service: If you have any questions or if you receive unqualified or damaged products, please contact us timely and we will handle them immediately, We are committed to providing the best service for every customer.



Details

2 Post Driving-head: The 2 post-driving heads (55-70mm/2.17-2.76in) make this a perfect choice for T-Posts, Y-Posts, and ground rods.

Anti-slip Handle: The non-slip handle has comfortable anti-slip shock absorption, effectively reducing fatigue at work.

Application

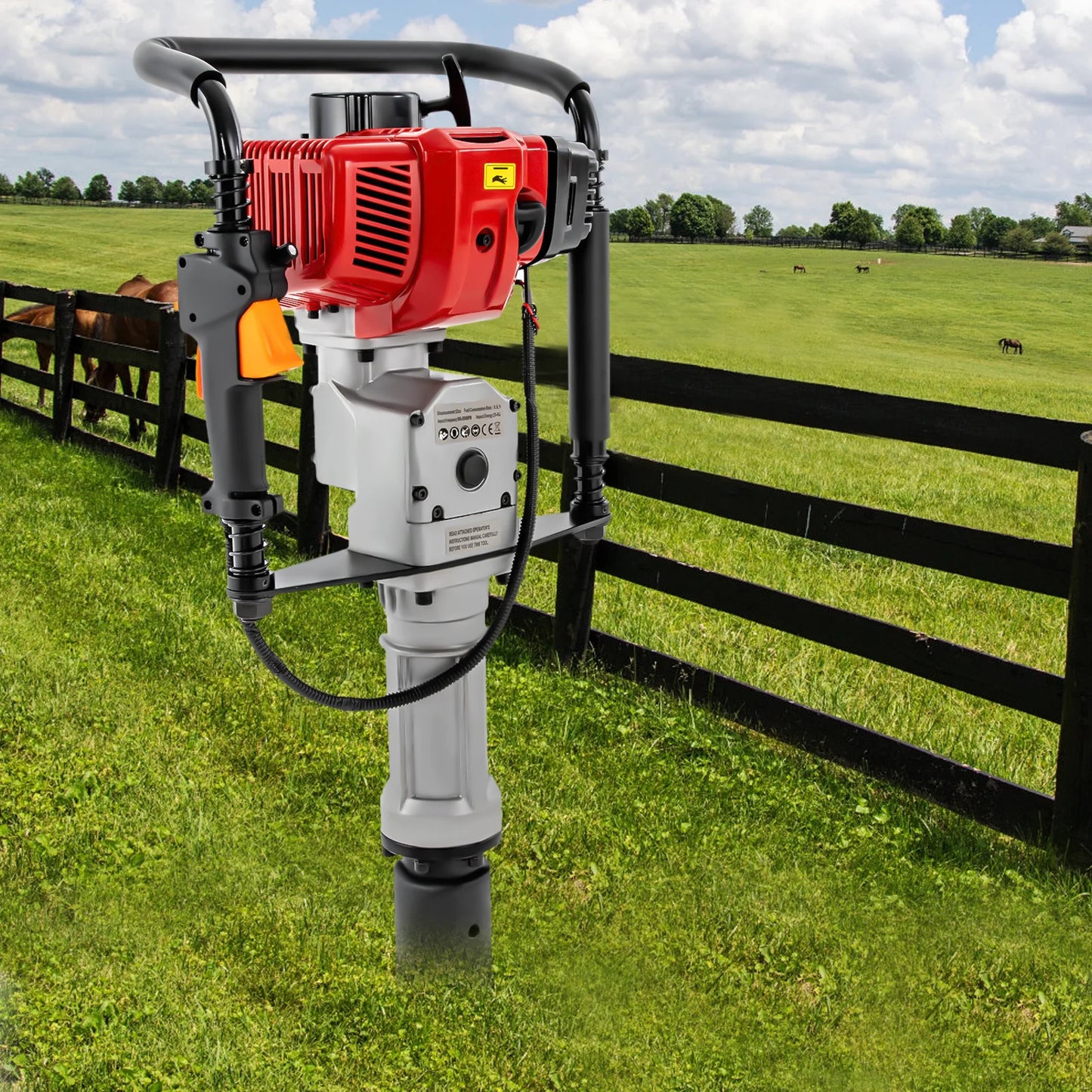

This pile driver is suitable for fencing, star pickets, posts, stakes, pipe driving, gardening, agriculture, geophysical exploration, construction, etc.

Package Included

1 x Petrol Post Driver
2 x Post Driving Head
1 x Mixing Oil Bottle
1 x Tools Kit



Notes

1.If the pile driver has the problem of not hammering. Then you need to check whether you have added too much grease, clean up the excess oil in the cylinder before disassembly, and re-add about 20g of high temperature resistant grease.
2.If the impact frequency is too high, you can reduce the speed of the carburetor slightly if you can't hold it by hand. Otherwise, the impact frequency should be increased.
3.If the machine does not start easily, first check the ratio of oil: gasoline: oil = 25:1, be sure to use a good two-stroke oil. Start the rope pull out an arm's length, and pull it two or three times in a row to start. When the machine starts cold, close the damper, and then open the damper after the machine is normal.
4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you don't mind before you order.
